Filtro de Reducción de DV/DT
Productos | 3 fases CA 400V, 50Hz/60Hz | 3 fases CA 690V, 50Hz/60Hz | Clase F | Aluminio | Cobre

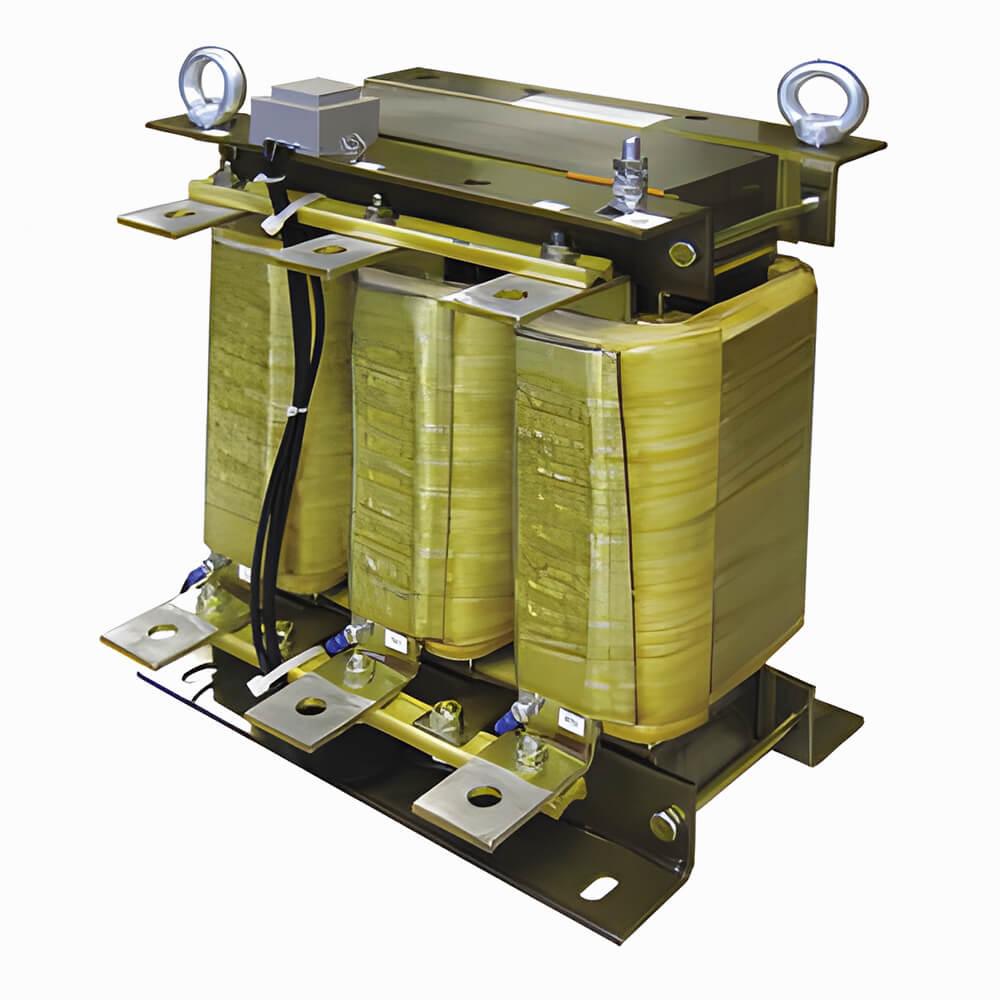

Filtros de Reducción de DV/DT (DUL – DV/DT Filters)
Filtros Baja Tensión
Función Principal:
Reducción de la pendiente de tensión (dv/dt) producida por el inversor, lo que suaviza el voltaje entregado al motor.
Beneficios Técnicos:
- Evitan sobretensiones peligrosas en el motor debidas a la reflexión de onda.
- Protegen bobinados y aislamiento del motor.
- Reducen el estrés eléctrico y térmico.
- Recomendado para distancias mayores a 60 metros entre vfd y motor
Dimensiones y Especificaciones
Voltaje del sistema: 3 fases CA 400V, 50Hz/60Hz
Clase de aislamiento del reactor: Clase F, Cobre

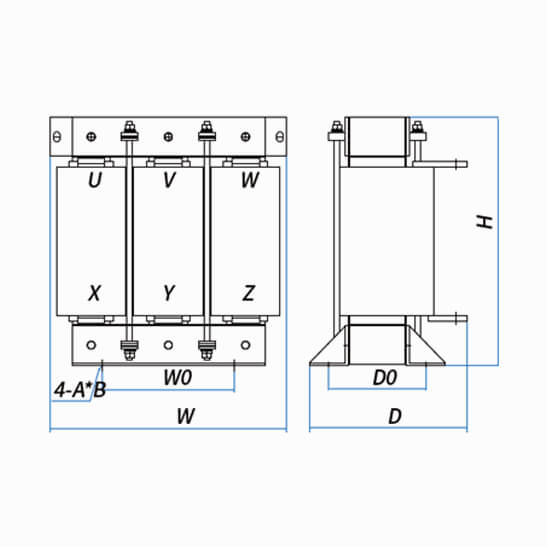

| REACTOR DE ENTRADA - 3 FASES CA 400V, 50HZ/60HZ - CLASE F, COBRE | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Modelo | No. Imagen | Potencia nominal (KW) | Frecuencia de conmutación (KHz) | Corriente nominal (A) | Peso (Kg) | Pérdida de línea (W) | Pérdida en el núcleo (W) | Dimensiones (mm) | Empaque individual | ||||||
| W | D | H | W0 | D0 | A*B | Dimensión (W*D*H) (mm) | Peso total (Kg) | ||||||||
| SP-FDV0005-4CU | A | 0.75 | 8 | 5 | 5 | 17.8 | 7.2 | 160 | 100 | 170 | 60 | 67 | 7*11 | 240*220*270 | 8 |
| SP-FDV0005-4CU | 1.5 | 8 | 5 | 5 | 17.8 | 7.2 | 160 | 100 | 170 | 60 | 67 | 7*11 | 240*220*270 | 8 | |
| SP-FDV0005-4CU | 2.2 | 8 | 5 | 5 | 17.8 | 7.2 | 160 | 100 | 170 | 60 | 67 | 7*11 | 240*220*270 | 8 | |
| SP-FDV0010-4CU | 4 | 8 | 10 | 9 | 26.5 | 10.6 | 190 | 120 | 195 | 80 | 87 | 7*11 | 240*220*270 | 12 | |
| SP-FDV0014-4CU | 5.5 | 8 | 14 | 9.1 | 24.3 | 11.4 | 190 | 120 | 195 | 80 | 87 | 7*11 | 240*220*270 | 12 | |
| SP-FDV0020-4CU | 7.5 | 8 | 20 | 9.1 | 46.5 | 11.3 | 190 | 120 | 195 | 80 | 87 | 7*11 | 240*220*270 | 12 | |
| SP-FDV0025-4CU | 11 | 8 | 25 | 9.2 | 45.7 | 12 | 190 | 120 | 195 | 80 | 87 | 7*11 | 240*220*270 | 12.5 | |
| SP-FDV0032-4CU | 15 | 4 | 32 | 9.4 | 47.6 | 12 | 190 | 120 | 195 | 80 | 87 | 7*11 | 240*220*270 | 12.5 | |
| SP-FDV0040-4CU | B | 18.5 | 4 | 40 | 13 | 78.5 | 12.6 | 240 | 160 | 190 | 110 | 85 | 9*18 | 320*270*330 | 17 |
| SP-FDV0045-4CU | 22 | 4 | 45 | 13 | 78.5 | 12.6 | 240 | 160 | 190 | 110 | 85 | 9*18 | 320*270*330 | 17 | |
| SP-FDV0060-4CU | 30 | 4 | 60 | 15 | 105 | 21.1 | 240 | 160 | 225 | 110 | 85 | 9*18 | 320*270*330 | 19 | |
| SP-FDV0075-4CU | 37 | 4 | 75 | 15 | 108.3 | 19.8 | 240 | 160 | 225 | 110 | 85 | 9*18 | 320*270*330 | 19 | |
| SP-FDV0100-4CU | 45 | 4 | 100 | 16 | 115.2 | 18.8 | 240 | 160 | 225 | 110 | 85 | 9*18 | 320*270*330 | 20 | |
| SP-FDV0120-4CU | 55 | 4 | 120 | 20 | 123.6 | 23.9 | 240 | 175 | 225 | 110 | 100 | 9*18 | 320*270*330 | 24 | |
| SP-FDV0150-4CU | 75 | 2 | 150 | 22 | 145.7 | 21.8 | 240 | 175 | 225 | 110 | 100 | 9*18 | 320*270*330 | 26 | |
| SP-FDV0180-4CU | C | 90 | 2 | 180 | 28 | 170.9 | 28 | 270 | 185 | 275 | 140 | 110 | 9*18 | 316*266*383 | 32.5 |
| SP-FDV0220-4CU | 110 | 2 | 220 | 30 | 210.4 | 26.4 | 270 | 185 | 275 | 140 | 110 | 9*18 | 316*266*383 | 34.5 | |
| SP-FDV0260-4CU | 132 | 2 | 260 | 36 | 215.6 | 30.5 | 310 | 190 | 285 | 170 | 110 | 11*18 | 396*296*443 | 41 | |
| SP-FDV0320-4CU | 160 | 2 | 320 | 40 | 217.9 | 28.3 | 310 | 190 | 285 | 170 | 110 | 11*18 | 396*296*443 | 45 | |
| SP-FDV0400-4CU | 185 | 2 | 400 | 50 | 249.5 | 36.1 | 310 | 225 | 285 | 170 | 135 | 11*18 | 396*296*443 | 55 | |
| SP-FDV0400-4CU | 200 | 2 | 400 | 50 | 249.5 | 36.1 | 310 | 225 | 285 | 170 | 135 | 11*18 | 396*296*443 | 55 | |
| SP-FDV0480-4CU | 220 | 2 | 180 | 69 | 378.7 | 55.3 | 370 | 230 | 680 | 190 | 135 | 16*26 | 466*356*528 | 76 | |
| SP-FDV0480-4CU | 250 | 2 | 480 | 69 | 378.7 | 55.3 | 370 | 230 | 380 | 190 | 135 | 13*26 | 466*356*528 | 76 | |
| SP-FDV0540-4CU | 280 | 2 | 540 | 75 | 380.5 | 52.3 | 370 | 230 | 380 | 190 | 135 | 13*26 | 466*356*528 | 82 | |
| SP-FDV0600-4CU | 315 | 2 | 600 | 75 | 391.2 | 52.3 | 370 | 230 | 380 | 190 | 135 | 13*26 | 466*356*528 | 82 | |
| SP-FDV0800-4CU | D | 355 | 2 | 800 | 104 | 420 | 66.8 | 440 | 295 | 410 | 240 | 175 | 14*28 | 486*381*558 | 112 |
| SP-FDV0800-4CU | 400 | 2 | 800 | 104 | 420 | 66.8 | 440 | 295 | 410 | 240 | 175 | 14*28 | 486*381*558 | 112 | |
| SP-FDV1000-4CU | 450 | 2 | 1000 | 112 | 465.5 | 61.9 | 440 | 295 | 410 | 240 | 175 | 14*28 | 486*381*558 | 120 | |
| SP-FDV1000-4CU | 500 | 2 | 1000 | 112 | 465.5 | 61.9 | 440 | 295 | 410 | 240 | 175 | 14*28 | 486*381*558 | 120 | |
Dimensiones y Especificaciones
Voltaje del sistema: 3 fases CA 400V, 50Hz/60Hz
Clase de aislamiento del reactor: Clase F, Aluminio

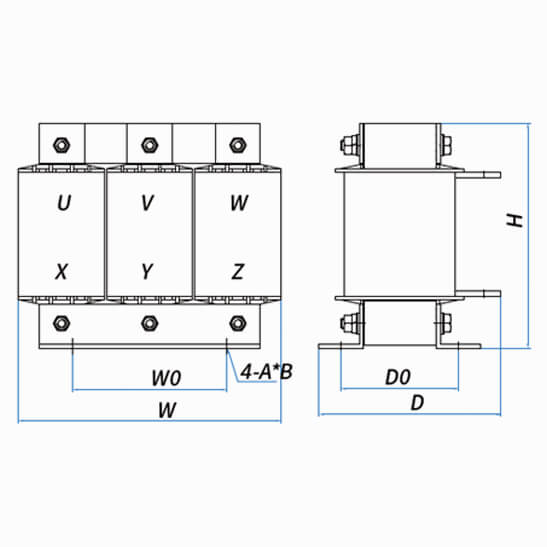

| REACTOR DE ENTRADA - 3 FASES CA 400V, 50HZ/60HZ - CLASE F, ALUMINIO | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Modelo | No. Imagen | Potencia nominal (KW) | Frecuencia de conmutación (KHz) | Corriente nominal (A) | Peso (Kg) | Pérdida de línea (W) | Pérdida en el núcleo (W) | Dimensiones (mm) | Empaque individual | ||||||
| W | D | H | W0 | D0 | A*B | Dimensión (W*D*H) (mm) | Peso total (Kg) | ||||||||
| SP-FDV0040-4AL | B | 18.5 | 4 | 40 | 13 | 79.6 | 12.6 | 240 | 160 | 190 | 110 | 85 | 9*18 | 320*270*330 | 17 |
| SP-FDV0045-4AL | 22 | 4 | 45 | 13 | 79.6 | 12.6 | 240 | 160 | 190 | 110 | 85 | 9*18 | 320*270*330 | 17 | |
| SP-FDV0060-4AL | 30 | 4 | 60 | 15 | 109.4 | 21.1 | 240 | 160 | 190 | 110 | 85 | 9*18 | 320*270*330 | 19 | |
| SP-FDV0075-4AL | 37 | 4 | 75 | 15 | 113.7 | 19.8 | 240 | 160 | 190 | 110 | 85 | 9*18 | 320*270*330 | 19 | |
| SP-FDV0100-4AL | 45 | 4 | 100 | 16 | 122.4 | 18.8 | 240 | 160 | 225 | 110 | 85 | 9*18 | 320*270*330 | 20 | |
| SP-FDV0120-4AL | 55 | 4 | 120 | 20 | 127.9 | 23.9 | 240 | 175 | 225 | 110 | 100 | 9*18 | 320*270*330 | 24 | |
| SP-FDV0150-4AL | 75 | 2 | 150 | 22 | 147.9 | 21.8 | 240 | 175 | 225 | 110 | 100 | 9*18 | 320*270*330 | 26 | |
| SP-FDV0180-4AL | C | 90 | 2 | 180 | 28 | 189.9 | 28 | 270 | 185 | 275 | 140 | 110 | 9*18 | 316*266*383 | 32.5 |
| SP-FDV0220-4AL | 110 | 2 | 220 | 30 | 212.2 | 26.5 | 270 | 185 | 275 | 140 | 110 | 9*18 | 316*266*383 | 34.5 | |
| SP-FDV0260-4AL | 132 | 2 | 260 | 36 | 222.4 | 30.5 | 310 | 190 | 285 | 170 | 110 | 11*18 | 396*296*443 | 41 | |
| SP-FDV0320-4AL | 160 | 2 | 320 | 40 | 218.5 | 28.3 | 310 | 190 | 285 | 170 | 110 | 11*18 | 396*296*443 | 45 | |
| SP-FDV0400-4AL | 185 | 2 | 400 | 50 | 258.7 | 36.1 | 310 | 225 | 285 | 170 | 135 | 11*18 | 396*296*443 | 55 | |
| SP-FDV0400-4AL | 200 | 2 | 400 | 50 | 258.7 | 36.1 | 310 | 225 | 285 | 170 | 135 | 11*18 | 396*296*443 | 55 | |
| SP-FDV0480-4AL | 220 | 2 | 480 | 69 | 391.8 | 55.3 | 370 | 230 | 380 | 190 | 135 | 13*26 | 466*356*528 | 76 | |
| SP-FDV0480-4AL | 250 | 2 | 480 | 69 | 391.8 | 55.3 | 370 | 230 | 380 | 190 | 135 | 13*26 | 466*356*528 | 76 | |
| SP-FDV0540-4AL | 280 | 2 | 540 | 75 | 377.2 | 52.3 | 370 | 230 | 380 | 190 | 135 | 13*26 | 466*356*528 | 82 | |
| SP-FDV0600-4AL | 315 | 2 | 600 | 75 | 377.2 | 52.3 | 370 | 230 | 380 | 190 | 135 | 13*26 | 466*356*528 | 82 | |
| SP-FDV0800-4AL | D | 355 | 2 | 800 | 104 | 430.9 | 66.8 | 440 | 295 | 410 | 240 | 175 | 14*28 | 486*381*558 | 112 |
| SP-FDV0800-4AL | 400 | 2 | 800 | 104 | 430.9 | 66.8 | 440 | 295 | 410 | 240 | 175 | 14*28 | 486*381*558 | 112 | |
| SP-FDV1000-4AL | 450 | 2 | 1000 | 112 | 476.2 | 61.9 | 440 | 295 | 410 | 240 | 175 | 14*28 | 486*381*558 | 120 | |
| SP-FDV1000-4AL | 500 | 2 | 1000 | 112 | 476.2 | 61.9 | 440 | 295 | 410 | 240 | 175 | 14*28 | 486*381*558 | 120 | |
Dimensiones y Especificaciones
Voltaje del sistema: 3 fases CA 400V, 50Hz/60Hz
Clase de aislamiento del reactor: Clase F, Cobre
| REACTOR DE ENTRADA - 3 FASES CA 400V, 50HZ/60HZ - CLASE F, COBRE | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Modelo | No. Imagen | Potencia nominal (KW) | Potencia nominal (KW) | Corriente nominal (A) | Peso (Kg) | Pérdida de línea (W) | Pérdida en el núcleo (W) | Dimensiones (mm) | Empaque individual | ||||||
| W | D | H | W0 | D0 | A*B | Dimensión (W*D*H) (mm) | Peso total (Kg) | ||||||||
| SP-FDV0005-6CU | A | 0.75 | 8 | 5 | 12.9 | 29.7 | 9.6 | 240 | 135 | 235 | 110 | 83.5 | 7*11 | 320*270*330 | 17 |
| SP-FDV0005-6CU | 1.5 | 8 | 5 | 12.9 | 29.7 | 9.6 | 240 | 135 | 235 | 110 | 83.5 | 7*11 | 320*270*330 | 17 | |
| SP-FDV0005-6CU | 2.2 | 8 | 5 | 12.9 | 29.7 | 9.6 | 240 | 135 | 235 | 110 | 83.5 | 7*11 | 320*270*330 | 17 | |
| SP-FDV0010-6CU | 4 | 8 | 10 | 16.1 | 29 | 11 | 240 | 145 | 235 | 110 | 93.5 | 7*11 | 320*270*330 | 20 | |
| SP-FDV0010-6CU | 5.5 | 8 | 10 | 16.1 | 29 | 11 | 240 | 145 | 235 | 110 | 93.5 | 7*11 | 320*270*330 | 20 | |
| SP-FDV0015-6CU | 7.5 | 8 | 15 | 16.1 | 29 | 11 | 240 | 145 | 235 | 110 | 93.5 | 7*11 | 320*270*330 | 20 | |
| SP-FDV0020-6CU | 11 | 8 | 20 | 16.6 | 37.6 | 10.8 | 240 | 145 | 235 | 110 | 93.5 | 7*11 | 320*270*330 | 20.5 | |
| SP-FDV0025-6CU | 15 | 8 | 25 | 16.6 | 37.6 | 10.8 | 240 | 145 | 235 | 110 | 93.5 | 7*11 | 320*270*330 | 20.5 | |
| SP-FDV0030-6CU | 18.5 | 4 | 30 | 9.4 | 62.2 | 18.4 | 190 | 165 | 195 | 80 | 87 | 7*11 | 240*220*270 | 12.5 | |
| SP-FDV0030-6CU | 22 | 4 | 30 | 9.4 | 62.2 | 18.4 | 190 | 165 | 195 | 80 | 87 | 7*11 | 240*220*270 | 12.5 | |
| SP-FDV0045-6CU | B | 30 | 4 | 45 | 15.6 | 96.7 | 21.2 | 240 | 170 | 190 | 110 | 95 | 9*18 | 320*270*330 | 19.5 |
| SP-FDV0045-6CU | 37 | 4 | 45 | 15.6 | 96.7 | 21.2 | 240 | 170 | 190 | 110 | 95 | 9*18 | 320*270*330 | 19.5 | |
| SP-FDV0065-6CU | 45 | 4 | 65 | 18.8 | 112.6 | 20.5 | 240 | 170 | 230 | 110 | 95 | 9*18 | 320*270*330 | 23 | |
| SP-FDV0065-6CU | 55 | 4 | 65 | 18.8 | 112.6 | 20.5 | 240 | 170 | 230 | 110 | 95 | 9*18 | 320*270*330 | 23 | |
| SP-FDV0090-6CU | 75 | 2 | 90 | 20.2 | 124.7 | 21.1 | 240 | 170 | 230 | 110 | 95 | 9*18 | 320*270*330 | 24.5 | |
| SP-FDV0110-6CU | C | 90 | 2 | 110 | 24.6 | 154.5 | 26 | 270 | 175 | 240 | 140 | 105 | 9*18 | 316*266*383 | 29 |
| SP-FDV0150-6CU | 110 | 2 | 150 | 32.2 | 201.4 | 27.6 | 270 | 180 | 275 | 140 | 115 | 9*18 | 316*266*383 | 36.5 | |
| SP-FDV0150-6CU | 132 | 2 | 150 | 32.2 | 201.4 | 27.6 | 270 | 180 | 275 | 140 | 115 | 9*18 | 316*266*383 | 36.5 | |
| SP-FDV0220-6CU | 160 | 2 | 220 | 44.8 | 225.8 | 35 | 310 | 195 | 290 | 170 | 125 | 11*18 | 396*296*443 | 50 | |
| SP-FDV0220-6CU | 185 | 2 | 220 | 44.8 | 225.8 | 35 | 310 | 195 | 290 | 170 | 125 | 11*18 | 396*296*443 | 50 | |
| SP-FDV0220-6CU | 200 | 2 | 220 | 44.8 | 225.8 | 35 | 310 | 195 | 290 | 170 | 125 | 11*18 | 396*296*443 | 50 | |
| SP-FDV0260-6CU | 220 | 2 | 260 | 47.6 | 244.1 | 32.4 | 310 | 205 | 290 | 170 | 125 | 11*18 | 396*296*443 | 52.5 | |
| SP-FDV0320-6CU | 250 | 2 | 320 | 53.4 | 253.7 | 34.9 | 310 | 210 | 290 | 170 | 130 | 11*18 | 396*296*443 | 58.5 | |
| SP-FDV0320-6CU | 280 | 2 | 320 | 53.4 | 253.7 | 34.9 | 310 | 210 | 290 | 170 | 130 | 11*18 | 396*296*443 | 58.5 | |
| SP-FDV0400-6CU | 315 | 2 | 400 | 74.4 | 433 | 44.7 | 360 | 225 | 385 | 190 | 135 | 13*26 | 466*356*528 | 81.5 | |
| SP-FDV0400-6CU | 355 | 2 | 400 | 74.4 | 433 | 44.7 | 360 | 225 | 385 | 190 | 135 | 13*26 | 466*356*528 | 81.5 | |
| SP-FDV0480-6CU | 400 | 2 | 480 | 76.7 | 425.2 | 55.2 | 370 | 225 | 385 | 190 | 135 | 13*26 | 466*356*528 | 84 | |
| SP-FDV0480-6CU | 450 | 2 | 480 | 76.7 | 425.2 | 55.2 | 370 | 225 | 385 | 190 | 135 | 13*26 | 466*356*528 | 84 | |
| SP-FDV0600-6CU | D | 500 | 2 | 600 | 87.3 | 443.8 | 64.2 | 370 | 225 | 385 | 190 | 145 | 13*26 | 466*356*528 | 94.5 |
| SP-FDV0600-6CU | 560 | 2 | 600 | 87.3 | 443.8 | 64.2 | 370 | 225 | 385 | 190 | 145 | 13*26 | 466*356*528 | 94.5 | |
| SP-FDV0800-6CU | 630 | 2 | 800 | 112.3 | 493.2 | 79.9 | 440 | 295 | 415 | 240 | 175 | 13*26 | 466*356*528 | 120.5 | |
